Valve Gallery -
Rare And Unusual Valves (2) Valves:
19F3, 19C3, CV57 (E1271), 5642, VR-92 (10E-105).

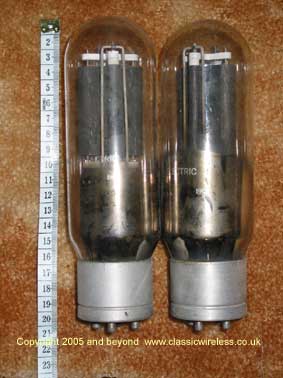

Two valves from General Electric above.
Left is 19F3, right is 19C3. They are large at 210mm tall, can you
tell me their function? |
|

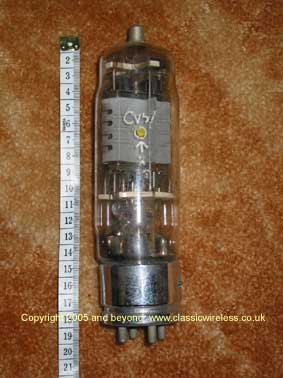

Shown above is a CV57. Another big valve
at 202mm tall. This is a beam tetrode with maximum anode voltage of
11000v. From the early 1940s. Chrome plated base
section. Equivalent of E1271. |

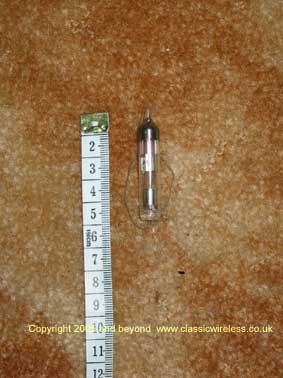

Shown above is a Mullard 5642. Four digit ident
numbers from Mullard often indicated special quality. Wire ended
connections, of 52mm height. |
|
VR-92, also designated 10E/105. 48mm
height. B3G base. Rectifier, equivalent of EA50. |
Continue to the next Rare
And Unusual Valves gallery page
